2007-2008 Tige RZ4 Complete Ballast System

If you have a 2007-2008 Tige RZ4, and want a fully automated ballast system that fills and drains with a switch, this Complete Reversible Pump Ballast Solution is what youre looking for. With a perfect fit, maximum capacity and optimized storage efficiency, you get the best performance possible behind the boat, combined with the convenience of automated filling and draining to make your time on the water as enjoyable as possible.

If youre looking for a ballast solution combines the perfect wake or wave, with the convenience of fully automated filling and draining, this upgrade for your 2007-2008 Tige RZ4 is what you need.

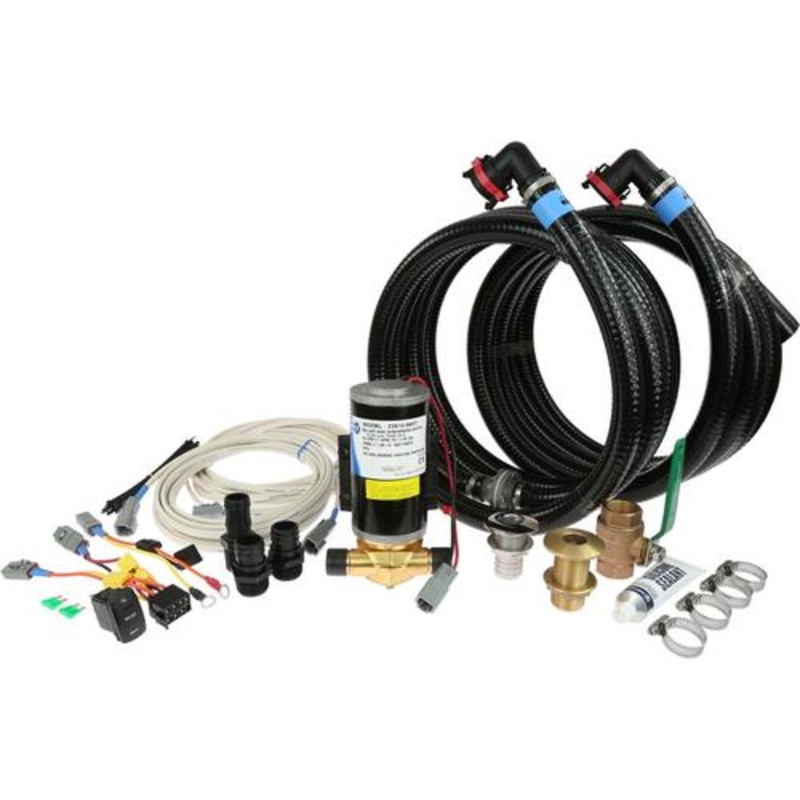

Our solution for your boat includes:

• Ballast Bag Details & Specs
  • Port Rear ExactFIT 880lb Ballast Bag: 65″L x 23″W x 20″H
  • Starbord Rear ExactFIT 880lb Ballast Bag: 65″L x 23″W x 20″H
  • Pair of Bow DirectFIT 220lb Ballast bags: 54″L x 18″W x 12″H
  • All necessary plugs, hoses, wiring, and pumps based on your selection
  • Total Ballast Weight: 2,200lbs
• Pump Options:
  • Guppy Reversible Ballast Pump
    • Fill Rate: 75lbs/min
    • Flow Rate: 680 Gallons Per Hour / 11.3 Gallons Per Minute
    • Physical Dimensions: 7.95″ L x 4.72″ W x 3.54″ H
    • Inlet/Outlet: 1/2″ NPT Internal Thread
    • Self-priming: Yes
    • Safety Features: Ignition Protected
  • Premium Plug-and-Wake Reversible Ballast Pump
    • Fill Rate: 110lbs/min
    • Flow Rate: 720 Gallons Per Hour / 12 Gallons Per Minute
    • Physical Dimensions: 7.95″ L x 4.72″ W x 3.54″ H
    • Inlet/Outlet: 1″ Hose Barb and 1/2″ NPT Internal Thread
    • Self-priming: Yes
    • Safety Features: Ignition Protected

Timer Module Option

The Achilles heel of reversible ballast pump systems has long been that they drain below the waterline, therefore making it difficult to know when to turn off the pump(s). Our new exclusive Timer Module solves that problem by giving you the ability to pre-set the run time of the pump(s), causing them to automatically shut off when finished filling/draining. This helps to prevent possible damage to the pump and/or impeller. We include a timer module for each zone, or pump, that you select automatically.

Boat Compatibility

This solution will only work with boats that do NOT have above floor hard tanks in the rear compartments. If your boat already has factory hard ballast tanks installed in the rear lockers, you’ll want to make use of one of our ballast upgrade solutions instead. Contact a Product Advisor if you have any questions.
